44mm Water-Cooled Turbo Wastegate | Torque Syndicate
44mm Water-Cooled Turbo Wastegate | Torque Syndicate
Regular price
$160.99 USD
Regular price
$0.00 USD
Sale price
$160.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

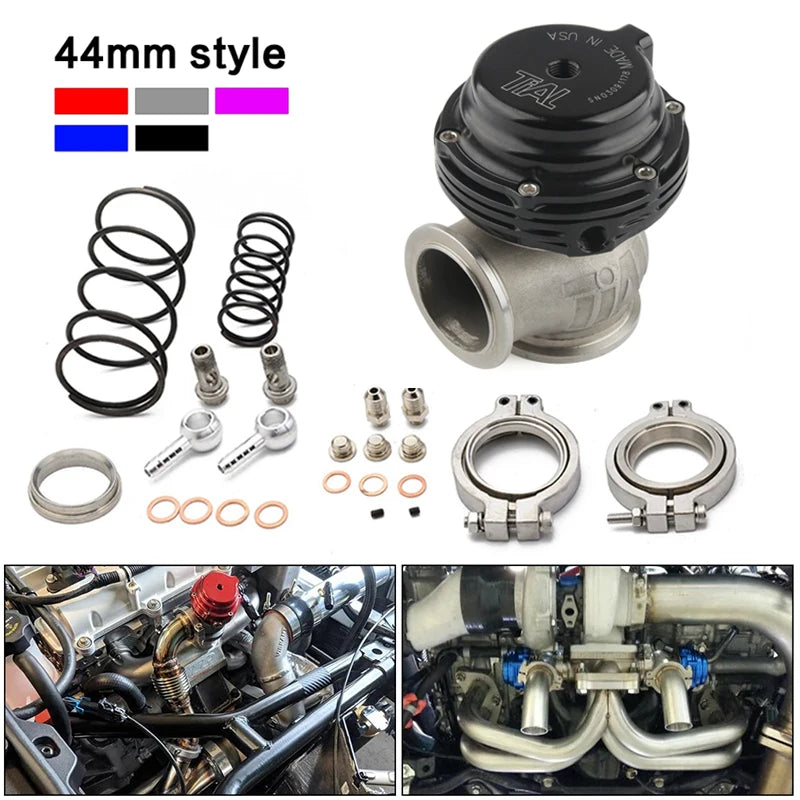

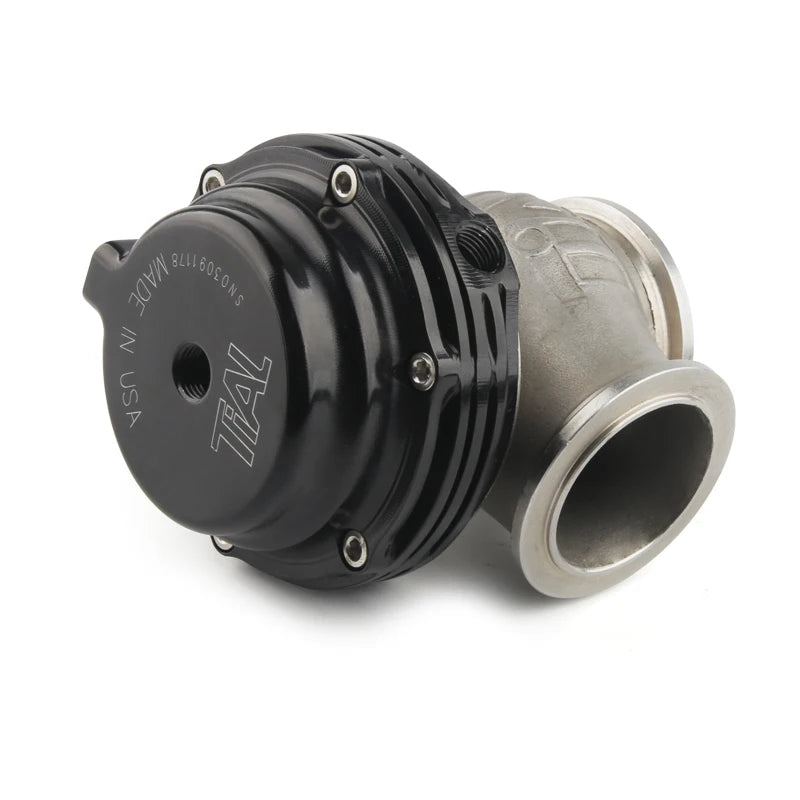

Stable boost control, track-tested cooling. This 44mm water-cooled external wastegate (MV-R style) delivers precise boost regulation under sustained heat. A compact body, V-band inlet/outlet, and water ports help manage temps for consistent performance on street and track builds.
Highlights
- 44mm valve with compact profile for tight engine bays
- Water-cooling ports to manage heat on long pulls and high EGT setups
- V-band flanges & clamps for quick, leak-free service
- Boost reference ports for top/bottom control and electronic boost controllers

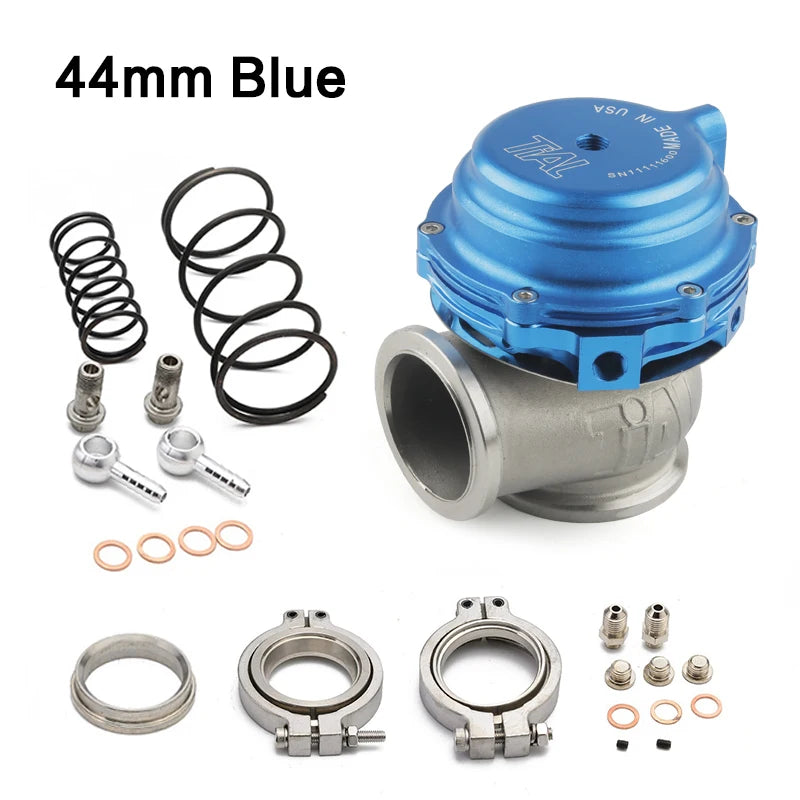

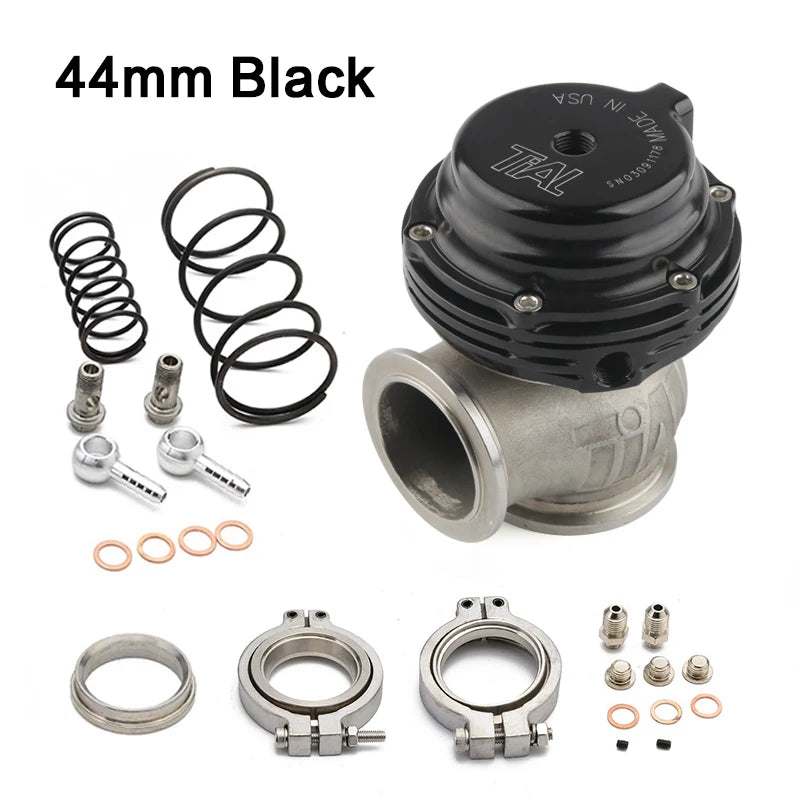

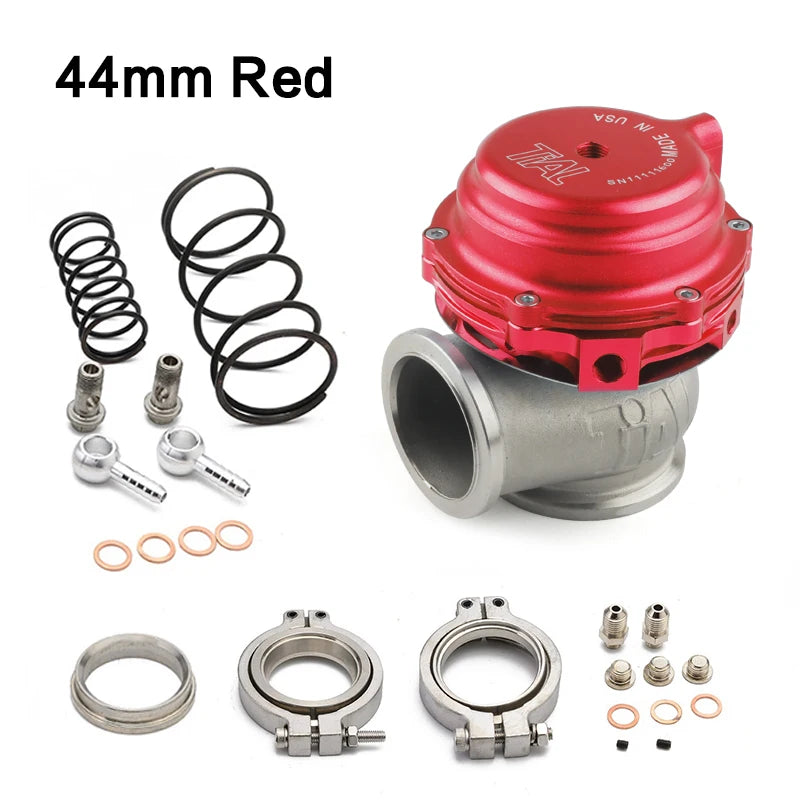

- Available colors: Red / Blue / Black

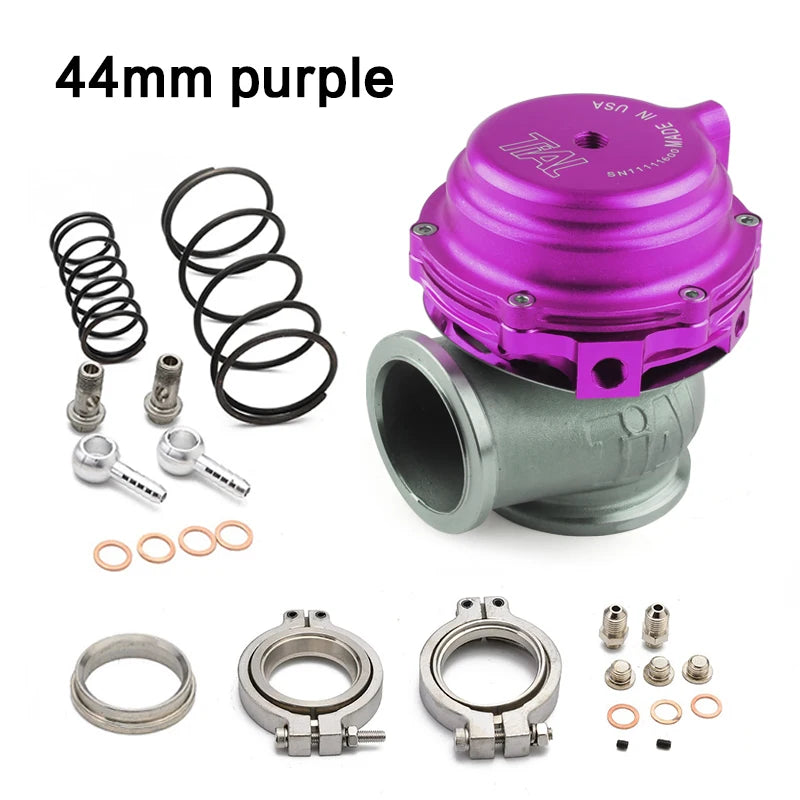

What’s included
- 44mm external wastegate assembly
- V-band inlet & outlet flanges + matching clamps
- Fire ring / gasket (where applicable)
- Boost reference fittings; water fittings & basic hardware
Specs
| Valve size | 44 mm |
| Cooling | Water-cooled ports (use with coolant loop recommended for endurance/track) |

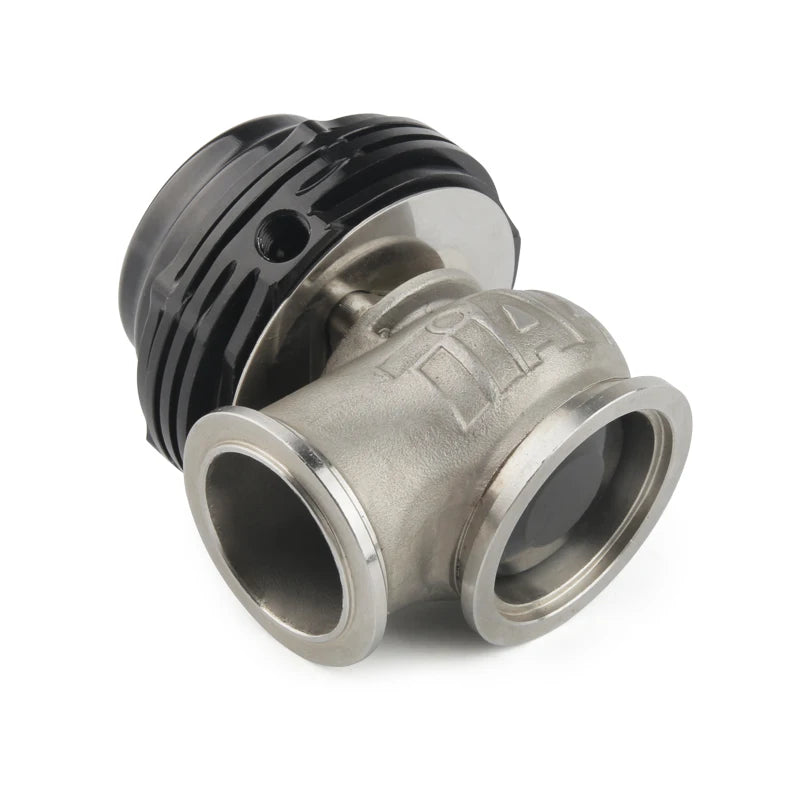

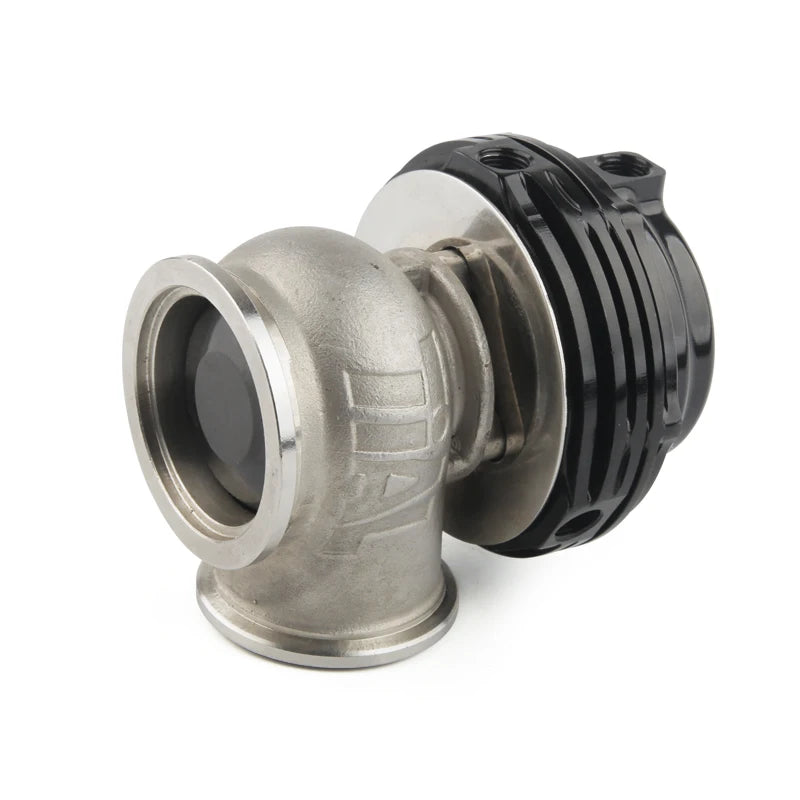

| Connections | V-band inlet & outlet |
| Reference ports | Top & bottom (for base spring and dome control) |
| Materials | Stainless steel body/valve; billet aluminum cap |
| Finish | Red / Blue / Black |
| Base spring | Pre-installed spring (varies by batch; commonly ~7–14 psi). Verify before install. |
Fitment / use
For turbo manifolds designed for a 44mm external wastegate with V-band connection. Works with internal or external boost controllers. Ensure the wastegate size matches your turbine flow and power target.

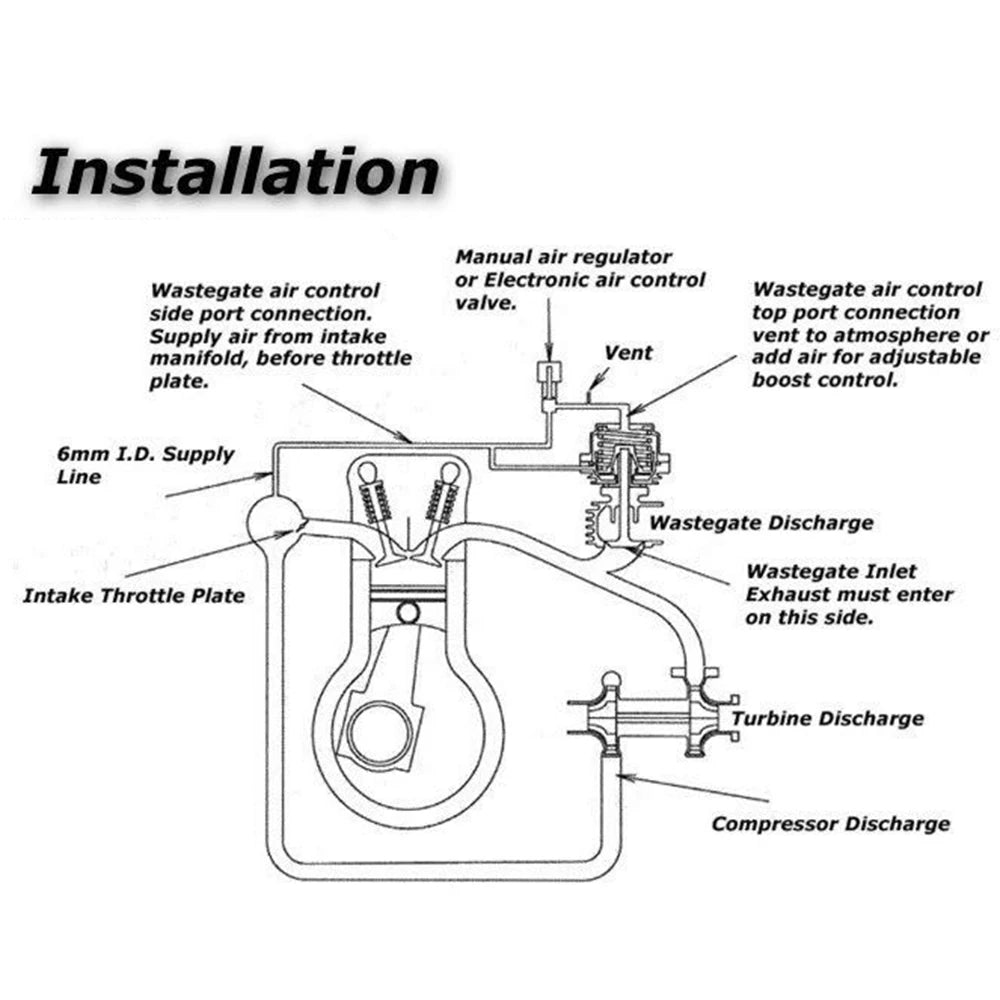

Install notes
- Mount with a clear path for the outlet (screamer or recirculated to downpipe).
- Plumb bottom port to boost source for base spring control; use top port for dome/solenoid control as needed.
- Water cooling is optional for street use but recommended for high EGT or endurance driving.
- After install, pressure-test reference lines and check for leaks.
FAQ
Do I need to run coolant lines?
Not strictly required for short street pulls, but water-cooling helps stabilize diaphragm temps and extend service life on track/endurance setups.
What spring pressure does it include?
Units ship with a base spring (often ~7–14 psi). Verify the installed spring before tuning; swap springs to match your target base boost.
Will it work with an electronic boost controller?
Yes—use the top port for dome pressure control with a 3-port or 4-port solenoid as per your controller’s diagram.
“MV-R style” indicates compatibility/form factor. Not affiliated with any OEM brand. For off-road/track use where required by law.
